Loxone Miniserver Compact is a high performance home automation/building management server with a compact design (suitable for smaller distribution boxes). The Miniserver Compact has the Loxone Air, Tree and Tree Turbo technology already built in and the software of the Audioserver integrated. This makes it a multimedia all-rounder.
Features:
€ 495,00 excl. VAT
SHARE:
Miniservers act as the core control units in every Loxone system. Below is given all the specs & feature that help you determine the right Miniserver for your needs.
The ultimate software solution for your home and building automation — free and ready to use!
With Loxone, your data remains exactly where it should — securely stored on your Miniserver. This device handles all your data processing locally, without ever sending information outside the system or syncing with any cloud services. Our firm commitment is clear: your project, your data! We fully guarantee your privacy.
Secure remote access with Remote Connect:
Our custom-built Remote Connect service lets you access your building’s control system anytime, from anywhere, with complete reliability and security. There’s no need for cloud services or third-party apps. Thanks to genuine end-to-end encryption, your data stays completely private and never exposed on the internet.
| Weight | 0,22 kg |
|---|---|
| Dimensions | 10,64 × 8,8 × 5,9 cm |
| Country of Origin | Austria |
| Wireless capability | Loxone Air (Up to 128 wireless devices) |
| LAN network | 100Mbps, Control via internal network, mobile app and web (up to 63 simultaneous connections) |
| Applications | Control Curtains, shades, Garage doors, etc., Intercom System, Manage Alarm system, Manage Lighting (On/Off/Dimming), Manage othe smart devices with different technologies via extentions, Manange HVAC (Heating, Cooling, Vetilation, etc), Smart Sound system with streaming features |
| Electrical specifications | |
|---|---|
| Power supply | 10 … 30VDC (relays operate above 19.2V) |
| Power consumption | Typical 2.4W, maximum 4.3W |
| Power loss at maximum load | 8.4W |
| Maximum inrush current | 24 A |
| Technical data | |
|---|---|
| Digital inputs | 4 digital inputs: logic 0: 0 ... 4.5VDC undefined: 4.6 ... 5.9VDC logic 1: 6 ... 30VDC Ri=45kΩ Can be used as a frequency counter: Frequency: 1 ... 500 Hz, minimum pulse width: 2 ms, accuracy: +/- 1 Hz |
| Relay outputs | 2 digital relay outputs, potential-free: 250VAC 16A* at cosᵠ =1 or 30VDC 16A* *Load > 12A: 2.5mm² / AWG12 |
| Power reserve of the internal clock | 64 hours |
| interfaces | |
|---|---|
| Loxone Link | Switchable to Tree in software: up to 30 Extensions or 50 Tree devices, max. 500m |
| Loxone Tree | Up to 50 Tree devices, max. 500m |
| Loxone Tree Turbo | Up to 10 Tree Turbo units, max. 150 m |
| Loxone Air | Up to 128 Air devices 868MHz (SRD Band Europe), 4 channels, max. 15.1mW; ERP 915MHz (ISM Band Region 2), 10 channels, max. 13.2mW Compatible Loxone antennas: SMA antenna with tilt joint 868 MHz (000200) SMA rod antenna 4dBi 868MHz (200151) SMA antenna 868 MHz (200048) |
| Ethernet, Protocols | 100Mbps, IPv4/IPv6, HTTPS, SSL/TLS TCP/IP, Modbus TCP, UDP |
| USB | USB 2.0: Type A, max. 500mA |
| Environmental conditions | |
|---|---|
| Temperature | 0 ... 50 °C / 32 ... 122 °F |
| Humidity | max. 95% RH (non-condensing) |
| Music playback | |
|---|---|
| Streaming | AirPlay 2, Spotify, TuneIn, Internet streaming services, NAS |
| Compatible USB storage devices | USB flash drives: FAT32/NTFS, one partition, max. 2TB USB hard drives: FAT32/NTFS, one partition, max. 2TB, max. 500mA power consumption |
| Audio file formats Sample rate | MP3, AAC, ALAC, Flac, WMA, WMA lossless, WAV, M4A, OGG up to 192kHz |
| Connection terminals | |
|---|---|
| Terminal type | DC power supply, Loxone Link, Tree, Tree Turbo: DG220B; copper/aluminum, solid wire only Digital inputs: FMC 0.5; copper/aluminum, solid wire only Relay outputs: MSTB 2.5 HC |
| conductor cross-section | DC power supply, Loxone Link, Tree, Tree Turbo: 0.28 … 0.8 mm² AWG23 … 18 Digital inputs: 0.14 ... 0.5 mm² AWG 26 ... 20 Relay outputs: 0.2 … 2.5mm² / AWG24 … 12 Load > 12A: 2.5mm² / AWG12 |
| Stripping length | DC power supply, Loxone Link, Tree, Tree Turbo: 5 … 6mm 0.2 … 0.24" Digital inputs: 7mm / 0.28" Relay outputs: 7mm / 0.28" |
| Tightening torque | DC power supply, Loxone Link, Tree, Tree Turbo: - Digital inputs: - Relay outputs: 0.5 ... 0.6 Nm / 0.37 ... 0.44 lbf ft |
| Temperature resistance | DC power supply, Loxone Link, Tree, Tree Turbo: -40 … 105°C / -40 … 221°F Digital inputs: -40 ... 70 °C / -40 ... 158 °F Relay outputs: -40 ... 70 °C / -40 ... 158 °F |
| Connection diagram | |
|---|---|
| Connection diagram |  |
| Product features | |
|---|---|
| Mounting type | DIN rail according to EN50022, 35 mm |
| Color | Green: RAL 6018 |
| Gloss level | Frosted |
| Weight & Dimensions | |
|---|---|
| Net weight / Gross weight | 170 g / 220 g |
| Product dimensions, No. of Units | 106.4 x 88 x 59 mm / 4.19 x 3.46 x 2.32” (L x W x H), 6 division units |

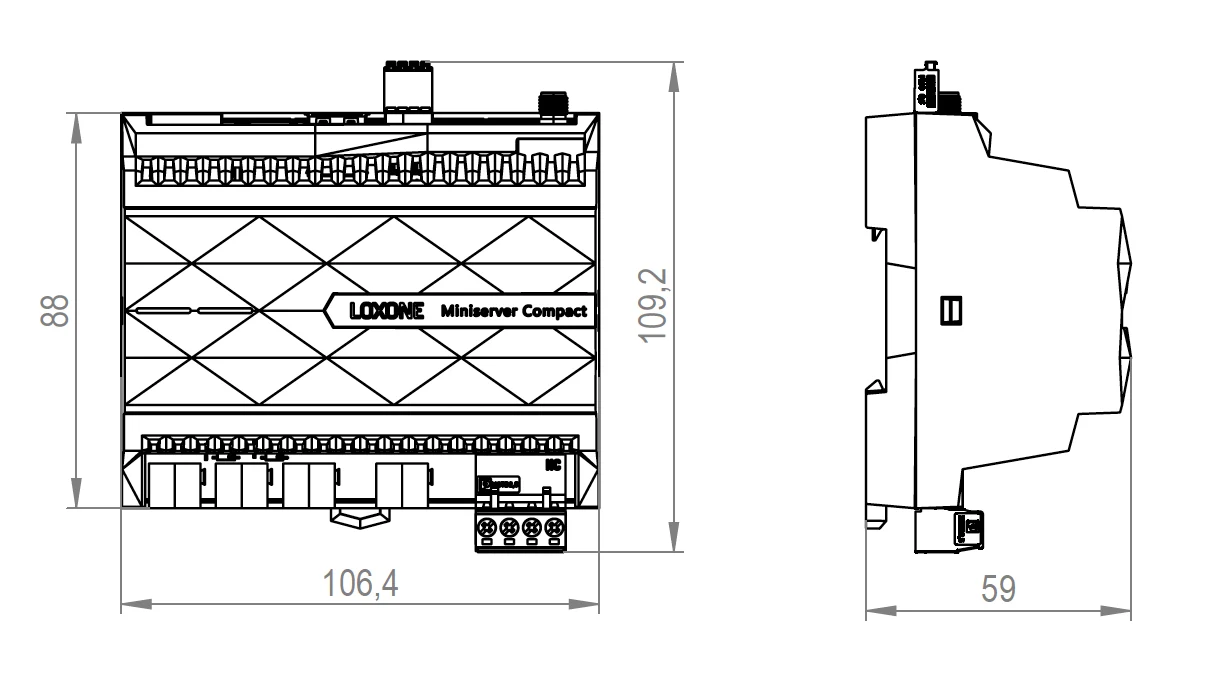

| Product dimensioning drawing |  |
| Certifications & Standards | |
|---|---|
| Area of application | Type 1 (UL 60730-1, CSA E 60730-1) |
| Rated voltage of the digital outputs | 4 kV (UL60730-1, max. altitude 2000m) |
| Software Class | A |
| Certifications | UL 60730-1, CSA E60730-1, IEC 60730-1 |
