Loxone Modbus Tree

SKU: 100593 Category: Brand:

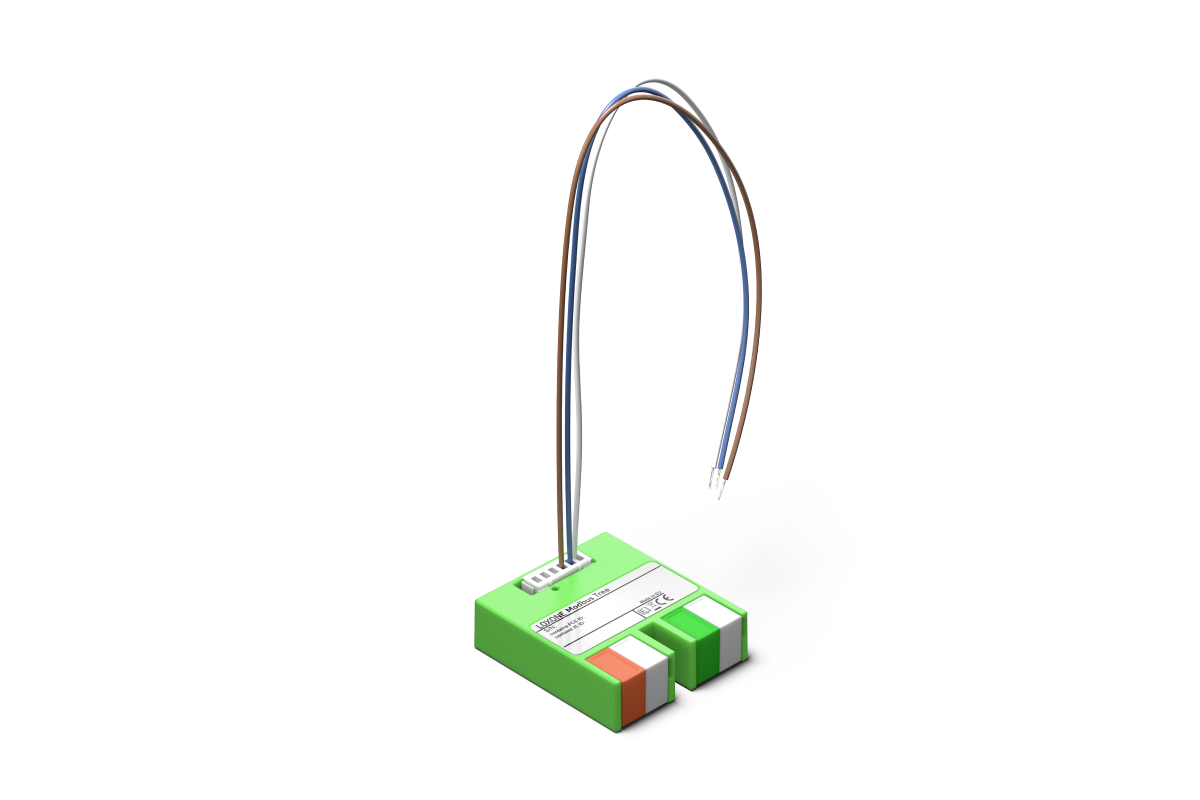

LOXONE Modbus Tree enables the decentralized integration of devices with a Modbus RTU interface. It is compact, mounts directly on the device and connects to the Miniserver via the LOXONE Tree.

Features:

  • Plug & Play: Hundreds of ready-made Modbus templates in the LOXONE Library
  • Flexible use even for devices without a template
  • No additional Modbus cable in the distribution box
  • Full control via the LOXONE App
  • Smaller than a matchbox

€ 120,00 excl. VAT

Available on backorder

SHARE:

Description

Technical details:

  • Power Supply: 10 … 30 V DC
  • Product dimensions: 38.3 x 34.3 x 10.5 mm
Scope of Delivery:
  • 1x Modbus Tree
  • 1x Connection cable
  • 1x 120 Ohm Resistance
  • 1x Folder

Specifications

Additional information

Weight 0,074 kg
Dimensions 0,079 × 0,079 × 0,041 cm
Technical Data
Power Supply 10 … 30 V DC
Power consumption typ. 0.06 W, max. 0.07 W
Interfaces
LOXONE Tree Connection with Miniserver / Tree Extension
Modbus RTU 1 Modbus device, 253 sensors and actuators Max. 30 m wire length Adjustable baud rate & parity Data types: 16 & 32 bit Polling cycle down to 5s
Environment Conditions
Temperature -20 ... 65°C
Humidity max. 95% r.H. (non condensing)
Connection Terminals & Diagram
Wire cross-section 0.28 … 0.8 mm² / AWG 23 … 18
Stripping length 5 … 6 mm
Temperature resistance -40 … 105 °C

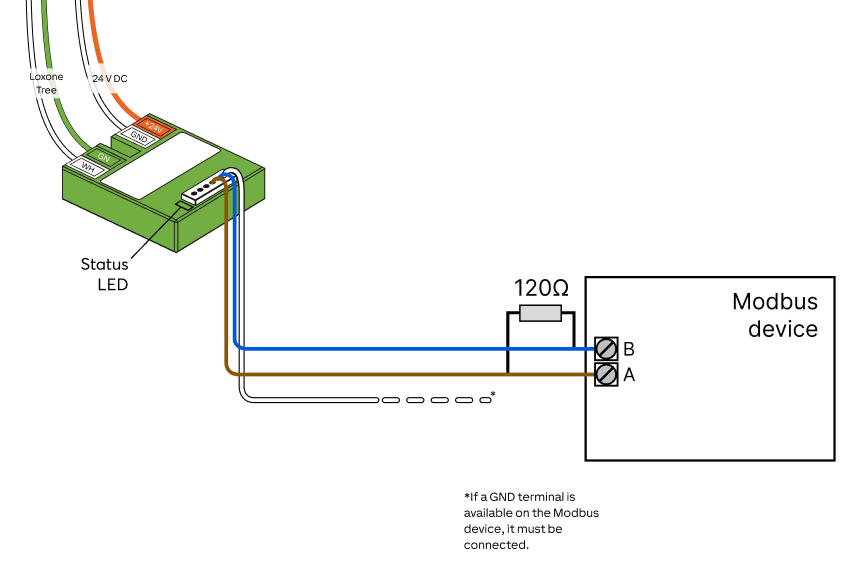

Connection Diagram
Connecting Cable
Wire cross-section 0.14 mm² / AWG 26
Temperature resistance 80 °C
Length 250 mm
Part. No. 000811
Product Characteristics
Colours Green: RAL 6018
Finish Matte
Net weight 54 g

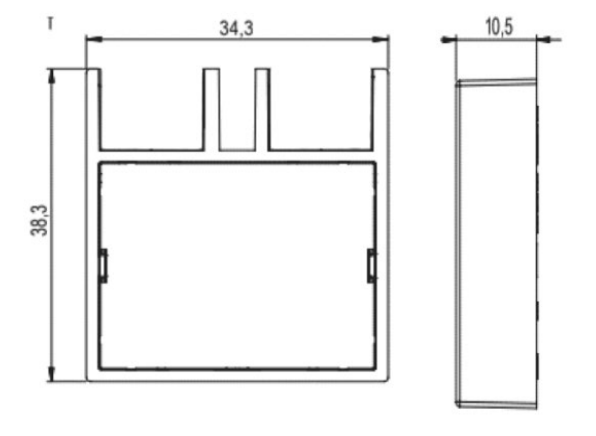

Product dimensions drawing
Certifications & Standards
Safety class IP20
Certificates
