The Audioserver is the most flexible audio solution for any building. It combines great computing power and 4 amplifier outputs while taking up a minimal amount of space.
Features:
€ 505,52 excl. VAT
SHARE:
Control your music intelligently and let it adapt dynamically to the time of day — from an energetic morning boost to a calm and relaxing evening atmosphere. Create personalized audio scenes that perfectly suit your lifestyle.

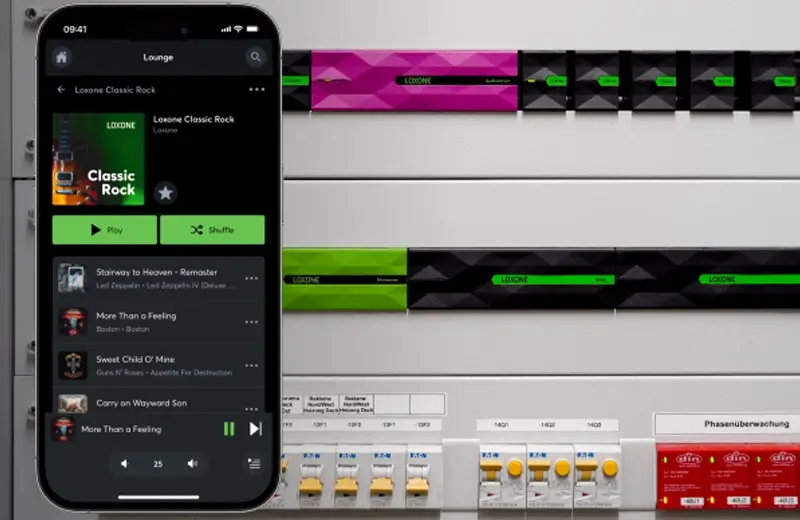

The Loxone app gives you complete control of the audio server at your fingertips. Create playlists, access streaming services, manage audio zones, and much more — all from one place.
Thanks to high-efficiency Class D amplifier technology, our audio server consumes over 60% less power than traditional audio systems.
Real-world comparison: As illustrated, a conventional 100V audio system was compared with our solution in a commercial installation. The test ran for 1,000 hours using a setup of 16 loudspeakers, clearly demonstrating the significant energy savings.
| Weight | 0,8 kg |
|---|---|
| Dimensions | 15,7 × 8,8 × 5,7 cm |
| supply voltage | 18 … 26 VDC |
| Outputs | 1× Line-out (analog), 44.1kHz sample rate, 1× SPDIF output (digital), 48kHz rate, 4× amplifier output for 4…8Ω speakers, 44.1kHz sampling rate |
| Inputs / Outputs | 1× Line-in (analog), 44.1kHz sample rate |
| humidity | Up to 95% (non-condensing) |
| Degree of protection | IP10 |
| Interfaces | Tree Turbo: Supports up to 10 Stereo Extensions with cable lengths up to 150 meters |
| Electrical specifications | |
|---|---|
| Supply voltage | 18 … 26 VDC |
| Power consumption | Typical 2.16W (standby), minimum 72W power supply recommended |
| Rated power with test signal | 24VDC: 110W; (setup: 100% load, Vin=0.77Vrms /1kHz - normal operation, max. 162.7W peak power) |
| Power loss at maximum load | 6.7 W |
| Exits |
4x speaker outputs 4 ... 8Ω, sampling rate: 44.1kHz ; 1x SPDIF out (digital, electrical), sampling rate: 48kHz; 1x line-out (analog), sampling rate: 44.1kHz |
| Entrances | 1x Line-In (analog) Sampling rate: 44.1kHz |
| temperature | 0 … 50°C / -32 … 122°F |
| Environmental conditions | |
|---|---|
| humidity | max. 95% rH (non-condensing) |
| Interfaces | |
|---|---|
| Loxone Tree Turbo | Up to 10 Tree Turbo units, max. 150 m |
| Ethernet | 150Mbps, IPv4/IPv6, SSL |
| USB | USB 2.0: Type A, max. 500mA |
| Music playback | |
|---|---|
| Streaming | AirPlay 2, Spotify, TuneIn, Internet streaming services, NAS |
| External Sources |
USB flash drives: FAT32/NTFS, one partition, max. 2TB USB hard drives: FAT32/NTFS, one partition, max. 2TB, max. 500mA power consumption |
| Audio file formats Sample rate | MP3, AAC, ALAC, Flac, WMA, WMA lossless, WAV, M4A, OGG up to 192kHz |
| type | Class D |
| Permissible loudspeaker impedance | 4 ... 8Ω |
| frequency | 20Hz ... 20kHz |
| Maximum peak power (per channel) | 50W (x4) |
| Maximum RMS power (per channel) | 18W (x4) |
| Connections | |
|---|---|
| conductor cross-section |
Power supply: 1 … 2.5mm² / AWG 17 … 12
Tree Turbo: 0.25 … 0.8mm² / AWG23 …18 Line-in, Line-out, SPDIF: - |
| Stripping length |
Power supply: 6 … 7.5mm / 0.24 … 0.30”
Tree Turbo: 5mm / 0.2" Line-in, Line-out, SPDIF: - |
| Tightening torque | Power supply: 0.5 ... 0.6 Nm / 0.37 ... 0.44 lbf ft
Tree Turbo: - Line-in, Line-out, SPDIF: - |
| Temperature resistance | Power supply: min. 80°C / 176°F for IEC, min. 75°C / 167°F for UL,
Tree Turbo: -40 … 105°C / -40 … 221°F Line-in, line-out, SPDIF: -25 ... 85°C / -13 ... 185°F |
| type |
Power supply: -
Tree Turbo: - Line-in, Line-out, SPDIF: 3.5mm/ 1/8" jack |
| Connection diagram | |
|---|---|
| Connection diagram |  |
| Product features | |
|---|---|
| Mounting type | DIN rail according to EN50022, 35 mm |
| Color | Purple: RAL 4006 |
| Gloss level | Frosted |
| Weight & Dimensions | |
|---|---|
| Net weight | 225 g |
| Gross weight | 270 g |
| Product dimensions | 157x88x57mm / 6.18x3.46x2.24” (LxWxH), 9 modular units |
| Product dimensioning drawing |  |
| Pack size | 180 x 110 x 65 mm / 7.08 x 4.33 x 2.56” (L x W x H) |
| Certifications & Standards | |
|---|---|
| Protection class | IP10 |
